JUST THE RIGHT TEMPERATURE
Low carbon, recyclable, sustainable passive thermal packaging solution up to 500 hours
STAR PRODUCTS

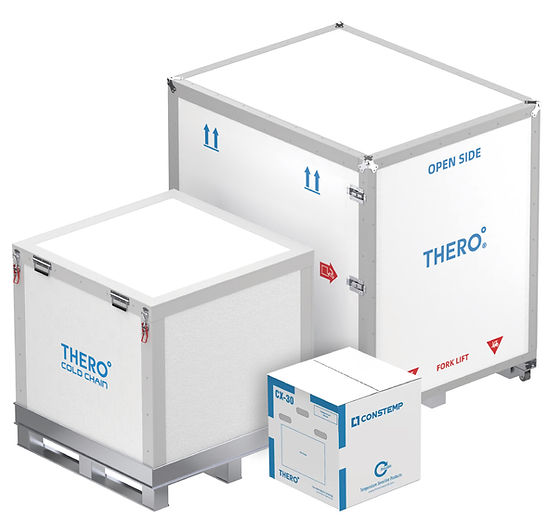

CONSTEMP
COLD CHAIN BOX
Based on PCM energy storage technology with world-class composite insulation materials. THERO developed a long-lasting, constant-temperature cold-chaincase with customizable temperatures. We can achieve temperatures from -80°C to 80°C and an independent runtime of up to 500 hours.
COLD-BOX THAT ALWAYS KEEPS THE
RIGHT TEMPERATURE
No Plug,
100% Non-electric
New energy storage, No electricity or battery needed
Ultra Long duration
Stay temperature controlled up to 500 hours
Precise acontrol
Deviation of temp low to ±1°C
Environmentally
friendly
All materials used in the product are non-toxic, reusable, and comply with aviation transport safety standards.
GPS tracking IOT system, temp recording, and more...
Recyclable
& reusable
Design to 2-year global recycle, easy to reuse
Real Time
Monitoring

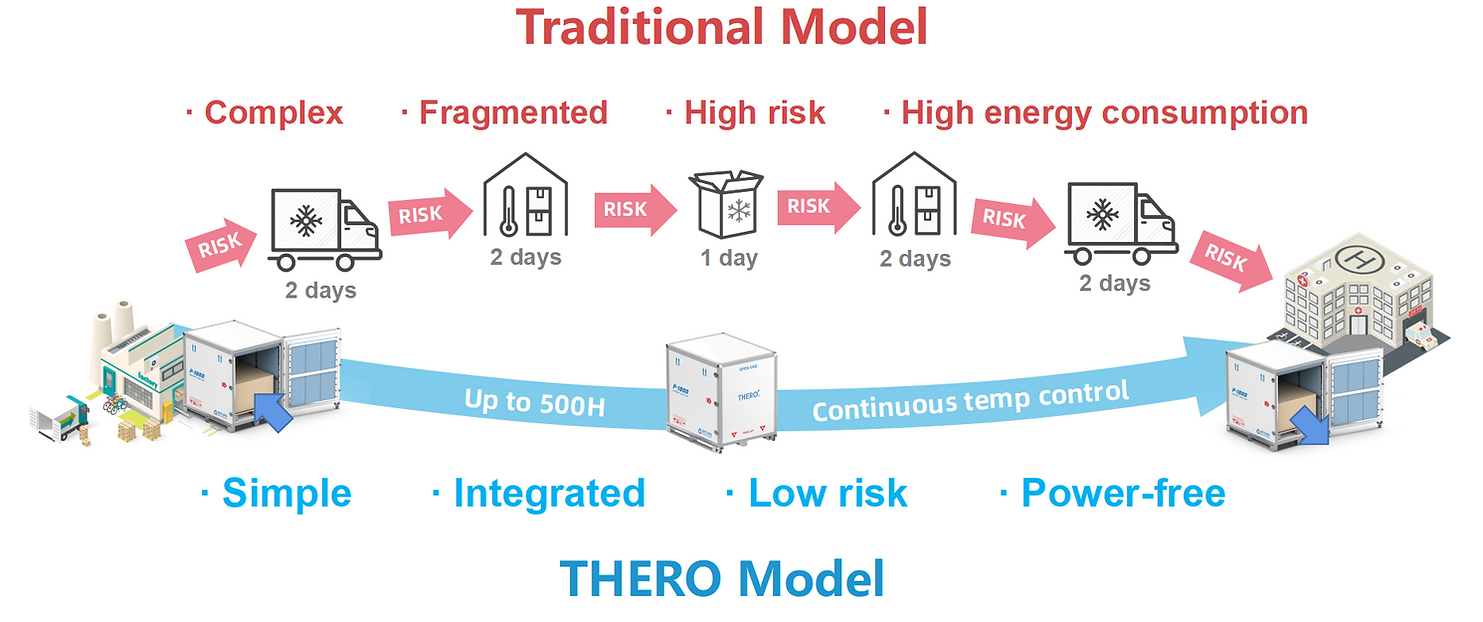

No more refrigerated trucks & cold storage facilities
The transportation process can be treated as regular cargo, allowing for more flexible cargo space.
Optional -70°C inorganic phase change materials are available, overcoming the limitations of dry ice.
Thero offers safe cross-temperature zone transportation solutions, ensuring the safety of goods throughout the entire journey, even when transporting from a 35°C region to a -30°C region.
Model | External Dimension （LxWxH） | Payload Dimension （LxWxH） | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|
PX-3000 | 1625 x 1440 x 1860
| 1280 x 1120 x 1380 | 1978 | 1200/450/400 | |

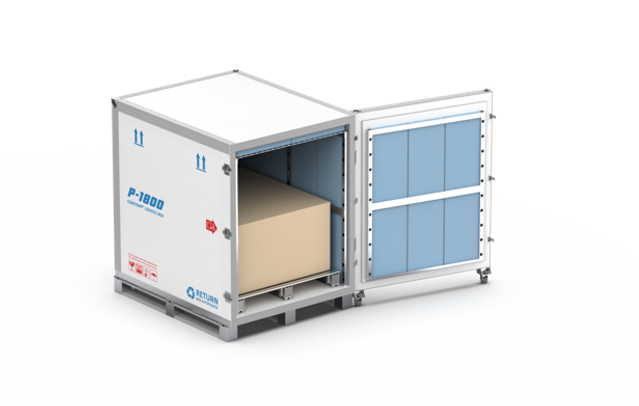

P-1800
| 1555 x 1210 x 1570 | 1250 x 1010 x 1170
| 1477 | 500/240/192 | |
P-550
| 1130 x 1100 x 1130 | 750 x 750 x 720 | 405
| 500/340/240
|
Model | External Dimension （LxWxH） | Payload Dimensions （LxWxH） | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|
CX-16-05 | 440 x 440 x 480 | 250 x 250 x 250 | 15 | 130 | |
CX-16-05D | 440 x 440 x 480 | 190 x 190 x 185 | 6 | 240 |
Model | External Dimension （LxWxH） | Payload Dimensions （LxWxH） | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|
CX-16-21
| 440 x 440 x 480
| 250 x 250 x 250 | 15 | 240
|
Model | External Dimension （LxWxH） | Payload Dimensions （LxWxH） | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|
CX-16-E20
| 440 x 440 x 480 | 250 x 250 x 250 | 15 | 120
|
Model | External Dimension （LxWxH） | Payload Dimensions （LxWxH） | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|
CX-30-05 | 490 x 490 x 530 | 300 x 300 x 300 | 27 | 168 | |
CX-30-05D | 490 x 490 x 530 | 245 x 245 x 245 | 14 | 240 |
Model | External Dimension （LxWxH） | Payload Dimensions （LxWxH） | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|
CX-30-E20T | 490 x 490 x 530 | 285 x 285 x 285 | 23 | 168 |
Model | External Dimension （LxWxH） | Payload Dimensions （LxWxH） | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|
CX-64-05D | 600 x 600 x 660 | 290 x 290 x 290 | 24 | 240 |
Model | External Dimension （LxWxH） | Payload Dimensions （LxWxH） | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|
CV-10-DI
| 400 x 330 x 550 | N/A | 8 | 200 |
Model | External Dimension （LxWxH） | Payload Dimensions （LxWxH） | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|
CV-130-05LQ | 870 x 620 x 635 | 630 x 450 x 450 | 127 | 168 | |
CV130-05OQ | 870 x 620 x 635 | 630 x 450 x 450 | 127 | 240 |
Model | External Dimension （LxWxH） | Payload Dimensions （LxWxH） | Payload | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|---|
CV-130-21 | 870 x 620 x 635 | 630 x 450 x 450 | 127 | 127 | 240 |
Model | External Dimension （LxWxH） | Payload Dimensions （LxWxH） | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|
CRX-28-05LQ | 445 x 310 x 370 | 380 x 190 x 200 | 14.4 | 60 | |
CRX-14-05LQ | 350 x 280 x 310 | 280 x 155 x 155 | 6.7 | 48 |
Model | External Dimension （LxWxH） | Payload Dimensions （LxWxH） | Payload | Guaranteed Duration | Qualified Duration |
|---|---|---|---|---|---|
CX-64-DI | 600 x 600 x 660 | N/A | 42 | 240 | |
CX-64-E20T | 600 x 600 x 660 | 360 x 360 x 360 | 46 | 240 | |
CX-64-E20 | 600 x 600 x 660 | 390 x 390 x 385 | 58 | 144 | |
CX-64-05D | 600 x 600 x 660 | 290 x 290 x 290 | 24 | 240 | |
CX-64-05 | 600 x 600 x 660 | 390 x 390 x 385 | 58 | 168 | |
CX-64-21 | 600 x 600 x 660 | 390 x 390 x 385 | 58 | 240 | |
CX-30-DI
| 490 x 490 x 530 | N/A
| 8
| 240
| |
CX-30-E20T
| 490 x 490 x 530 | 285 x 285 x 285
| 23
| 168
| |
CX-30-E20
| 490 x 490 x 530 | 300 x 300 x 300 | 27
| 144
| |
CX-30-05D
| 490 x 490 x 530 | 245 x 245 x 245
| 14
| 240
| |
CX-30-05
| 490 x 490 x 530 | 300 x 300 x 300 | 27 | 168
| |
CX-30-21
| 490 x 490 x 530 | 300 x 300 x 300
| 27
| 240 | |
CX-16-DI
| 440 x 440 x 480 | N/A
| 4
| 240
| |
CX-16-E20
| 440 x 440 x 480 | 250 x 250 x 250 | 15
| 120
| |
CX-16-05D | 440 x 440 x 480 | 190 x 190 x 185 | 6
| 240 | |
CX-16-05
| 440 x 440 x 480 | 250 x 250 x 250
| 15 | 130
| |
CX-16-21
| 440 x 440 x 480
| 250 x 250 x 250
| 15
| 240
|
APPLICATIONS
Hazardous
chemicals
Vaccines
Other high-value products that require precise temperature control
-70°C ULTRA-LOW TEMPERATURE VACCINE TRANSPORTATION AND STORAGE SOLUTION
NO dry ice
no hazards
Thero’s solution does not require dry ice for air shipping, which solves the biggest challenge of current plan.
Increase the current vaccine loading capacity for up to 10 times.
Air shipping Temperature control
No dry-ice or electric power required
Constemp logsitic box could keep the temperature <70℃ for more than 7 days without any supply of electricity.
Semi-permanently cold-storage
At the final destionation, the shipping box could use as a temporary storage unit
Supplement material refuel every 20 days.
No extra ultra-cold freezer needs
One stop solution for developing regions
The cold-chain for developing country is fragile.
Very few country could afford to build a cmplete ultra-low cold chain.
Thero could offer an door-to-door tempertuare solution.
Require no refrigerated truck or container.
No need to purchase ultra-cold freezer.
